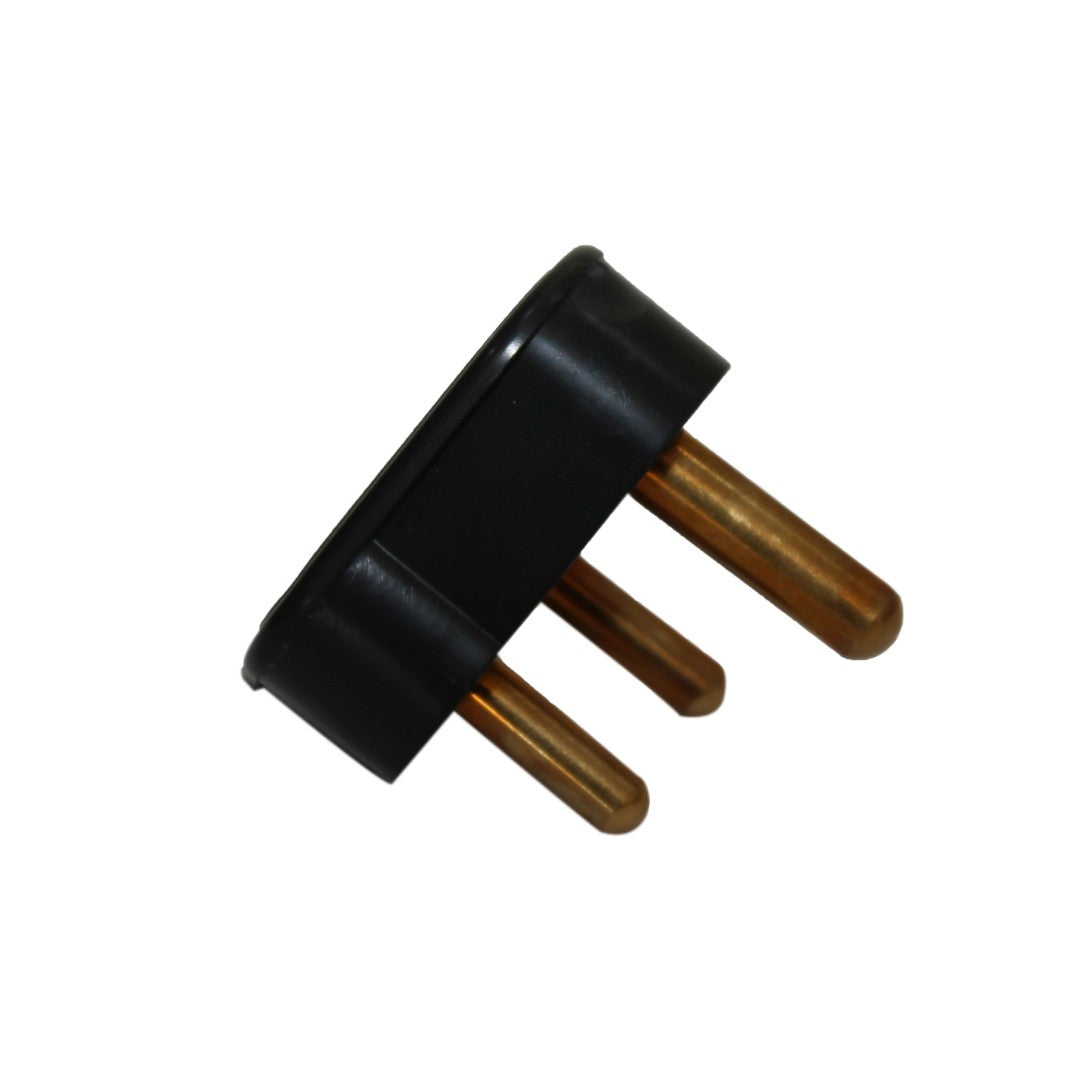

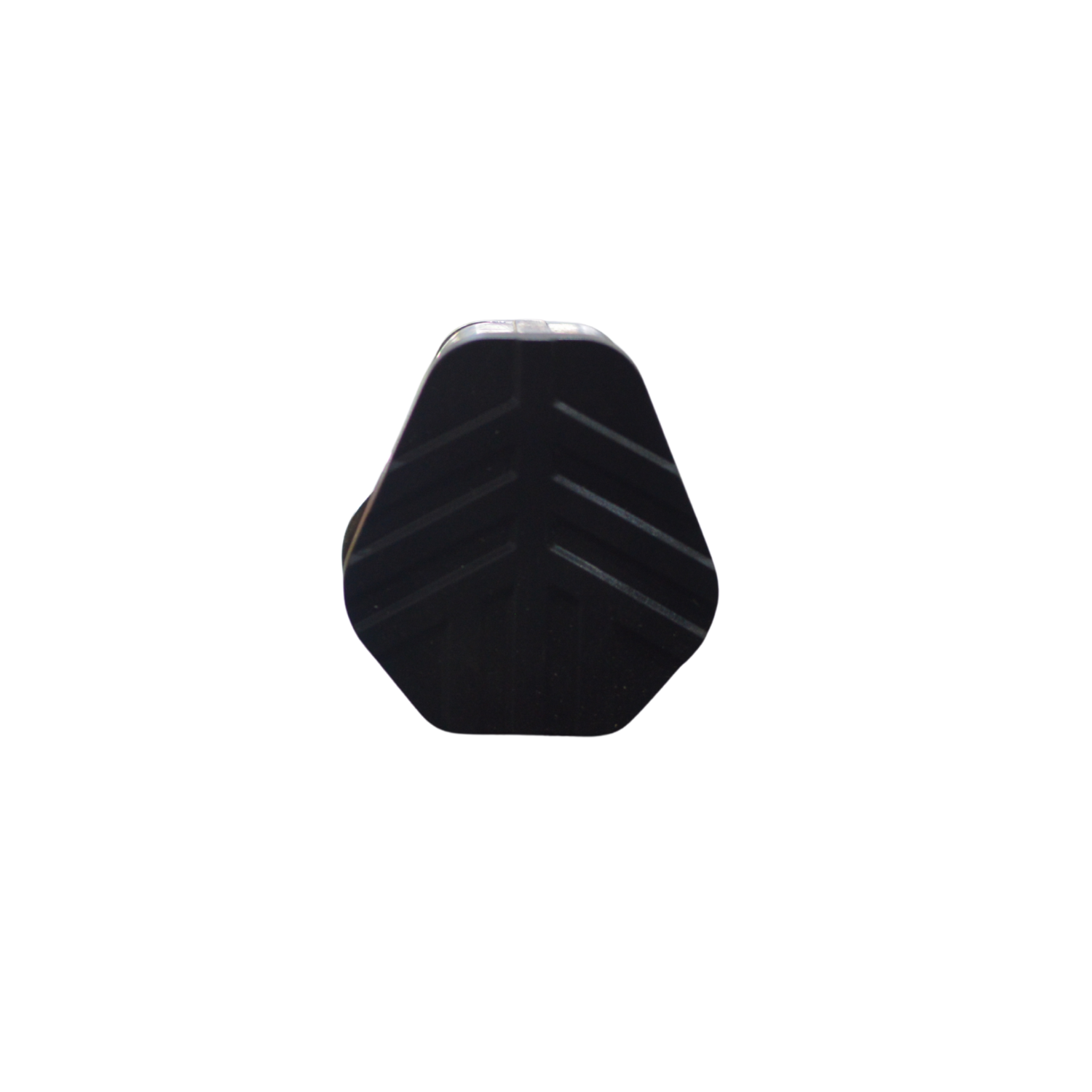

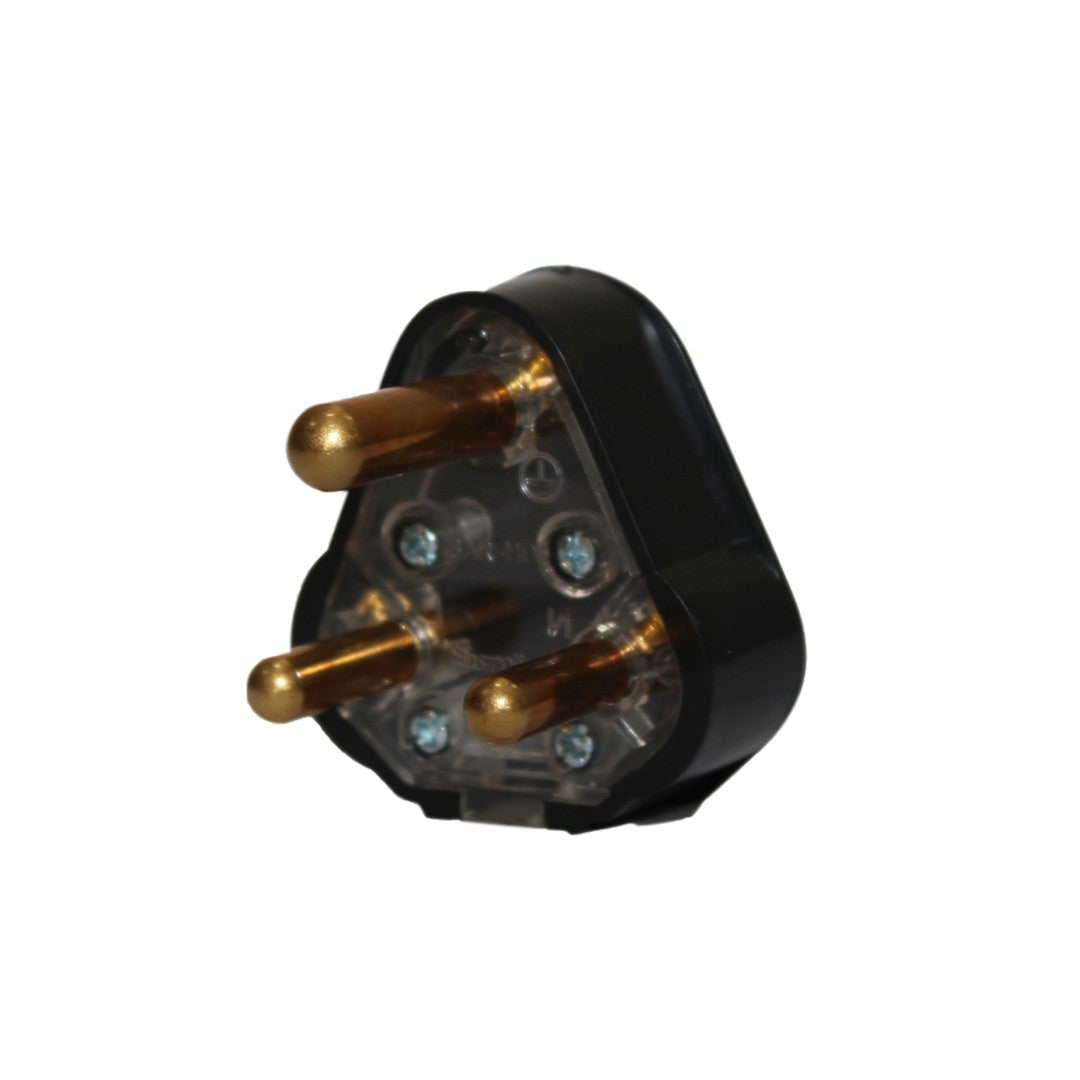

Rubber Plug Top 3-Pin – Heavy-Duty Black Electrical Mains Plug – Starke

South African Standard 3-Pin Plug Top: Essential for Safe Electrical Connections. The South African Standard 3-pin plug top is an essential component in the country's electrical systems. Serving as the primary method for connecting household, office, and industrial appliances to power sources, the 3-pin plug top plays a critical role in ensuring the safety and efficiency of electrical connections. Designed for both safety and reliability, this plug top adheres to the South African Bureau of Standards (SANS), making it an integral part of the electrical infrastructure. In this product description, we will explore the design, features, applications, and the importance of compliance with national safety standards.

Design and Features of the 3 Pin Plug Top

Three-Pin Configuration

The hallmark of the South African 3-pin plug top is its three-pin configuration, which includes the following:

1. Live (Phase) Pin: This pin is responsible for carrying the electrical current from the power source to the appliance. It is one of the key elements for ensuring that appliances receive the proper electrical supply.
2. Neutral Pin: The neutral pin provides the return path for the current, completing the circuit and allowing the appliance to function effectively.
3. Earth Pin: The earth pin is a safety feature that grounds the appliance. This connection ensures that any stray electrical current is safely diverted to the ground, preventing electric shocks and reducing the risk of fires caused by faulty wiring or equipment malfunctions.

The design of these three pins not only facilitates a stable electrical connection but also enhances the safety of appliances. The earth pin is slightly longer and thicker than the live and neutral pins, ensuring that the grounding connection is established before the live and neutral pins are engaged. This feature is a crucial safety measure that helps protect users from electric shock.

3 Pin Plug Top Specifications

The live and neutral pins of the South African standard 3-pin plug typically have a diameter of 4.0 mm and a length of 19 mm. The earth pin is slightly thicker and longer, measuring 4.0 mm in diameter and 20 mm in length. These specifications are designed to ensure the plug top fits securely into the socket, creating a stable and reliable connection. The earth pin’s design ensures that the safety feature is activated first, providing additional protection in case of faults or electrical surges. This design reduces the risk of electrical accidents by ensuring the appliance’s grounding system is functional before power is supplied to the device.

Materials

The materials used in the manufacturing of the 3-pin plug top are of high quality, ensuring both durability and heat resistance. The casing of the plug top is often made from tough plastic or thermoset materials. These materials are specifically chosen for their ability to withstand high temperatures without deformation or melting. The robust casing not only ensures the plug top lasts for years but also protects the internal components from environmental factors, such as moisture and dust, which could affect the safety and efficiency of the electrical connection.

3 Pin Plug Top Safety Features

In addition to the three-pin design, many South African 3-pin plug tops come equipped with safety features that enhance the protection they offer:

• Shutter Mechanism: A shutter is often incorporated over the live and neutral pins to prevent the accidental insertion of foreign objects. This is particularly beneficial in households with children or environments where plug safety is a priority. The shutter mechanism ensures that the pins cannot be accessed unless the plug is properly inserted into the socket, preventing electrical hazards.
• Overload Protection: Some 3-pin plug tops are designed with built-in overload protection to prevent overloading the appliance’s power supply. This feature helps prevent potential electrical fires caused by overheating, protecting both the appliance and users.

Current Rating

The standard South African 3-pin plug top typically has a current rating of 16A (amperes). This rating is ideal for household and office appliances, such as kettles, toasters, microwaves, computers, printers, and air conditioning units. It ensures that the plug top can handle the electrical demands of common household devices while maintaining safety and reliability.

Applications

1. Household Appliances

The South African 3-pin plug top is commonly used for a wide variety of household appliances. It is the standard plug for common devices such as kettles, toasters, microwaves, televisions, washing machines, and more. These plugs allow homeowners to safely connect their household appliances to the power grid while maintaining the safety of both the appliance and its users.

2. Office Equipment

In office environments, the 3-pin plug top is often used for computers, printers, photocopiers, and other office equipment that require stable and secure electrical connections. The reliability and safety of these plugs are critical in preventing power surges or electrical faults that could damage expensive office equipment or disrupt daily operations.

3. Industrial Use

For industrial applications, the South African 3-pin plug top is used to power larger machinery, equipment, and tools that require a reliable electrical connection. Many heavy-duty machines in factories and workshops are powered using 3-pin plugs, making them integral to daily operations. These plugs ensure that industrial equipment remains operational, while safety features protect workers from electrical hazards.

4. Outdoor and Specialized Devices

The 3-pin plug top is also used for outdoor or specialized devices, such as power tools, outdoor lighting systems, and generators. These plugs are designed to withstand more demanding environments, including exposure to weather conditions, ensuring that devices continue to operate safely and efficiently.

Importance of Compliance

Using a 3-pin plug top that complies with the South African Standards (SANS) is crucial for ensuring the safety and efficiency of electrical connections. Non-compliant plugs can lead to electrical faults, increasing the risk of fire or electric shock. Moreover, non-compliant plugs may not meet the necessary durability or performance requirements, posing potential dangers to both users and appliances. It is essential to ensure that the 3-pin plug top you are using meets SANS standards for both safety and functionality. Adhering to these standards guarantees that the plug top will provide the expected level of performance while maintaining the highest safety standards. The South African Standard 3-pin plug top is a vital element in ensuring safe electrical connections in residential, commercial, and industrial settings. Its robust design, current rating, and safety features make it an indispensable component for powering a wide variety of appliances. By complying with SANS standards, these plug tops ensure that electrical connections are safe, efficient, and reliable, reducing the risk of electrical faults and enhancing the protection of both users and equipment. When selecting a 3-pin plug top, always ensure that it meets the required standards for safety and functionality, ensuring a secure connection and peace of mind in every application.
